Filter fabric Rolls for Erosion Control of Sub-grade Material

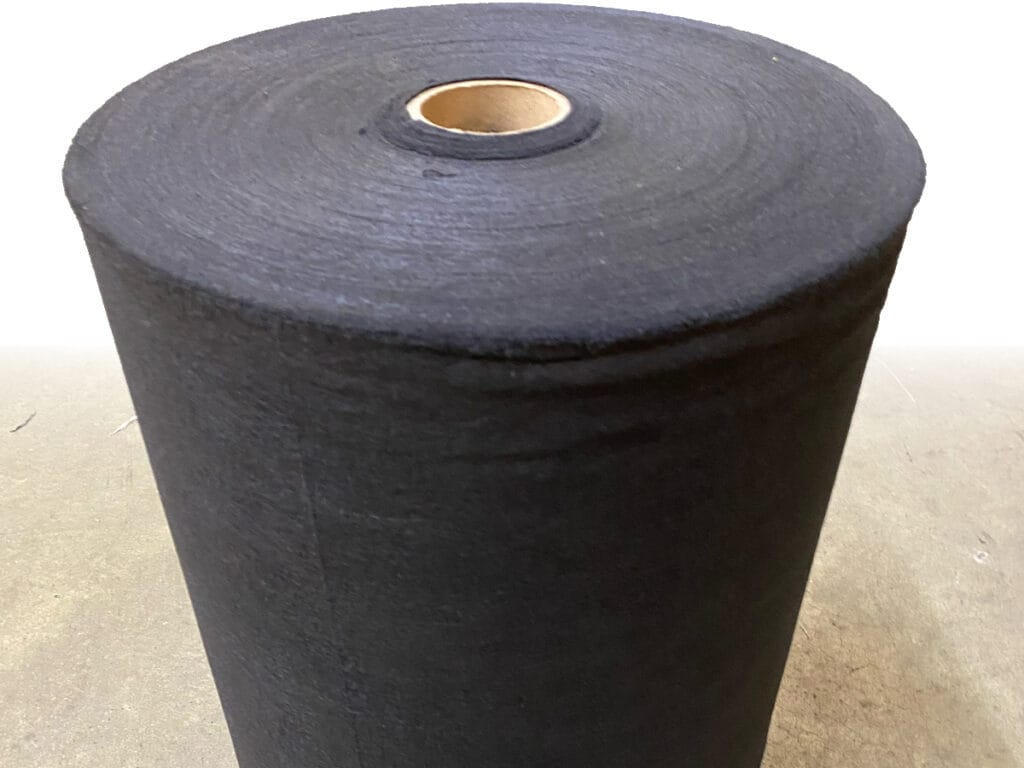

MarMacʼs Geotextile Rerolls are custom width and length rolls of DOT-compliant filter fabric material. Custom slit rolls are easy to transport, handle and install. Custom roll widths are available upon request. Meets FDOT specifications.
Features & Benefits
- Resistant to plugging
- Low cost & cost effective
- Quick, easy & permanent installation
- Chemical resistant
Geotextile Rerolls are pre-cut, alleviating the need to handle or store large rolls, resulting in less time spent measuring/cutting, and less wasted material. The filter fabric stops the passage of silt, soil, and sediment, preventing undermining of pavement sub-grade material. Geotextile Rerolls also reduce the need for costly repairs, and installation is quick and easy.
Geotextile Rerolls are designed and manufactured to meet FDOT specifications. Geotextile Reroll fabric weight is 6 ounces per square yard. Geotextile Rerolls meet or exceed the material requirements of the following ASTM standards, as shown in the Typical Properties table:
| ASTM D4632 ASTM D4355 |
ASTM D4833 ASTM D4751 |
ASTM D3786 ASTM D4491 |
ASTM D4533 |
|---|
| MIN AVG ROLL VALUE | METHOD | |
|---|---|---|
| Grab Tensile | 160 lbs | ASTM D4632 |
| Grab Elongation | 50 % | ASTM D4632 |
| Puncture Strength | 85 lbs | ASTM D4833 |
| Mullen Burst | 280 psi | ASTM D3786 |
| Trapezoidal Tear | 60 lbs | ASTM D4533 |
| UV Resistance | 70 % | ASTM D4355 |
| Apparent Size Opening | 70 US Sieve | ASTM D4751 |
| Permittivity | 1.30 sec-1 | ASTM D4491 |
| Water Flow Rate | 110 gpm/ft2 | ASTM D4491 |

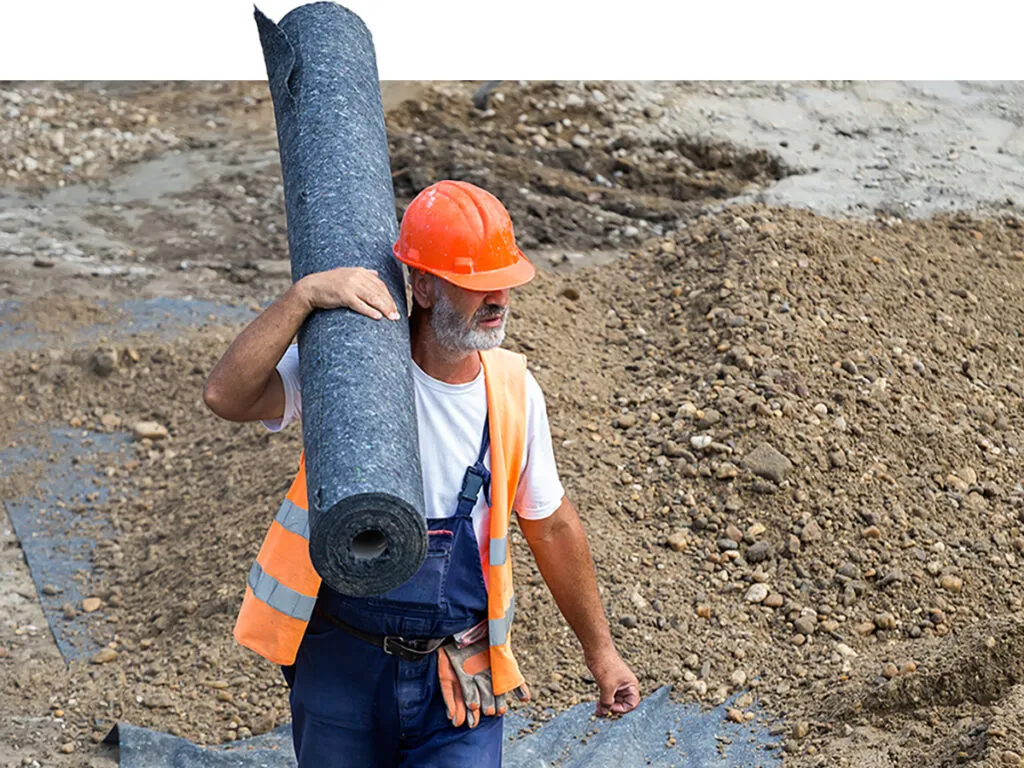

Geotextile Rerolls are easy to install; simply unroll, cut to size, wrap around the object of interest (if applicable), secure and/or backfill.
AVAILABILITY
Roll widths: 18, 24, 36, 54, 72”
*Custom roll widths available
APPLICATIONS
Erosion control
Pipe joints & pipeline wrapping
Stormwater underlay
Detention/retention systems
Drainage & filtration
French drain creation
Stabilization & reinforcement
Base course/sub-grade separation
