MarMac®

PIPE COUPLINGS

For over seventy years, MarMac couplers have remained industry professionals’ proven, preferred choice for connecting gravity-flow stormwater and sanitary sewer systems. With permanent jointing solutions for pipe, manholes, and box culverts, our couplings are built to last the lifespan of the pipes & structures they connect. From 4″ corrugated HDPE to 144″ RCP & CSP and everything in between, each MarMac coupling is hand-made in our McBee, South Carolina manufacturing facility.

Made in USA - MarMac Construction Products

Built for the trenches.

Our pipe coupler membranes are engineered to be highly reliable while remaining lightweight to lower shipping costs. Alternating layers of polyethylene and woven polypropylene impart incredible strength and durability without sacrificing the flexibility required for an easy installation. A high-tack mastic permanently holds each layer together and aggressively bonds the coupling to the joint.

Cross-Laminated Polyethylene

Available with chemical or UV resistance

Rubberized Mastic

Aggressively adheres to all pipe surfaces

Woven Polypropylene

Puncture & shear-resistant reinforcement layer

Release Film

Easy-peel film protects the mastic from debris

MarMac Coupler Construction - Polyethylene backing
MarMac Coupler Construction - Shadow
MarMac Coupler Construction - Mastic
MarMac Coupler Construction - Shadow
MarMac Coupler Construction - Woven polypropylene
MarMac Coupler Construction - Shadow
MarMac Coupler Construction - Mastic
MarMac Coupler Construction - Shadow
MarMac Coupler Construction - Release Film

Regular vs

Heavy-Duty

While our Regular-Duty couplings (as shown above) can be considered “heavy-duty” compared to our competitors, our Heavy-Duty couplings include an additional layer of polyethylene. A reinforcement layer of woven polypropylene is sandwiched between the two layers of polyethylene, making our Heavy-Duty pipe couplers 3-ply and engineered for the most extreme conditions or special requirements.

Resistant to

punctures & tears.

A durable, cross-laminated, polyethylene backing is used for the outermost layer of our couplers. This tear-resistant exterior stands up to the harshest backfill requirements. The polyethylene is bonded to a puncture & shear-resistant layer of polypropylene, which also acts as reinforcement due to its incredibly strong, woven structure.

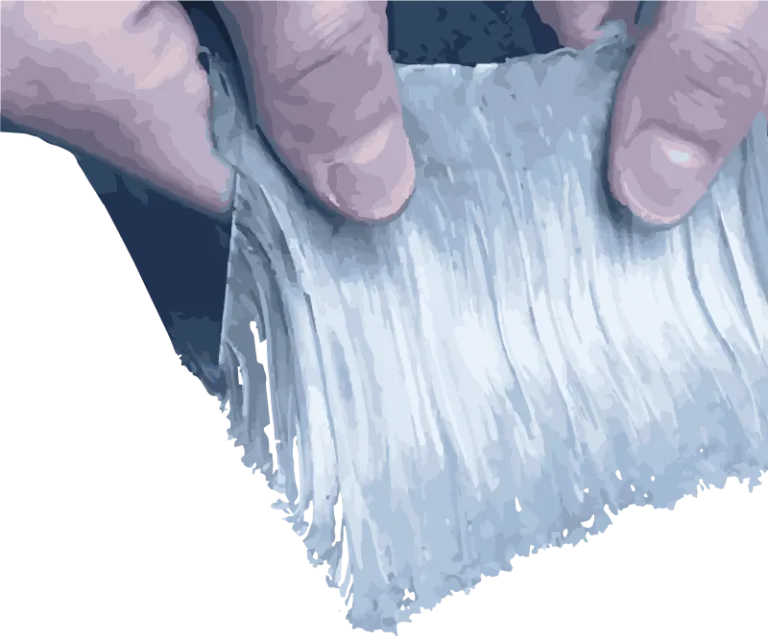

Specially-formulated

rubberized mastic.

All of our couplings are manufactured with multiple alternating layers of cold-flow, rubberized mastic. This not only permanently adheres the sheets of cross-laminated polyethylene and woven polypropylene together, but it aggressively bonds the underside of our couplers to all pipe surfaces. The mastic is designed to adhere more and more to the pipe surface over time, ultimately eliminating the need for the built-in compression bands, in theory.

Rubberized mastic couplings - MarMac Construction Products

High-tensile

compression bands.

To ensure the coupler remains adhered to the pipe surface and does not shift during backfill (in sub-grade applications), all MarMac couplings have built-in, free-sliding compression bands. The majority of our smaller-diameter pipe couplers (<30″) utilize cold-rolled stainless steel pipe clamps with 5/16″ hex head worm gears. Larger-diameter pipe couplings (30″≥ and all sizes of MacWrap Couplers) feature box-stitched, woven polyester straps with zinc-coated ratchets.

Once the coupler compression bands are tightened, a protective flap – made from the same mastic/polyethylene material as is used throughout the entire outer membrane – covers the exposed working area, keeping the strapping system completely isolated from the elements. In sub‐grade applications, backfill increases the compression against the entire coupler, benefiting performance while preventing any moisture, silt, or other sub-grade material from contacting the coupler’s internal components.

Hose clamps stainless pipe strapping - MarMac Construction Products

MacWrap Coupler

for concrete & precast

A highly-advanced, external joint coupler designed to permanently prevent infiltration at precast concrete structure connections, including reinforced concrete pipe (RCP), manhole sections, box culverts & stormwater retention systems, and many other round or elliptical concrete structures.

For connecting same diameter Reinforced Concrete Pipe (RCP).

APPLICATIONSTongue & Groove, Bell & Spigot, Round or Elliptical Pipe, Sub-Grade or Above Ground
PIPE SIZES12 – 144″
AVAILABILITYStandard, Chemical-Resistant, UV-Resistant

For sealing precast manhole sections.

APPLICATIONS Precast Manholes, Sub-Grade or Above Grade
MANHOLE SIZES 48 – 120″
AVAILABILITY Standard, Chemical-Resistant, UV-Resistant

For sealing stormwater retention systems & 4-sided precast structures.

APPLICATIONS Box Culverts, 4-Sided Precast Structures
BOX CULVERT SIZES All Sizes
AVAILABILITY Standard, Chemical-Resistant, UV-Resistant

A wider coupler for RCP and manhole rehabilitation.

APPLICATIONS Tongue & Groove, Bell & Spigot, Round or Elliptical Pipe, Manholes
SIZES 12 – 144″
AVAILABILITY Standard, Chemical-Resistant, UV-Resistant

For sealing of all types of precast joints where hydrocarbon solvent resistance is needed.

APPLICATIONS Tongue & Groove, Bell & Spigot, Round or Elliptical Pipe, Manholes, Box Culverts, 4-Sided Precast Structures
SIZES All Sizes

MacWrap Coupler

for precast concrete structures

A highly-advanced, external joint coupler designed to permanently prevent infiltration at precast concrete structure connections, including reinforced concrete pipe (RCP), manhole sections, box culverts & stormwater retention systems, and many other round or elliptical concrete structures.

For connecting same diameter Reinforced Concrete Pipe (RCP).

APPLICATIONSTongue & Groove, Bell & Spigot, Round or Elliptical Pipe, Sub-Grade or Above Ground
PIPE SIZES12 – 144″
AVAILABILITYStandard, Chemical-Resistant, UV-Resistant

For sealing precast manhole sections.

APPLICATIONS Precast Manholes, Sub-Grade or Above Grade
MANHOLE SIZES 48 – 120″
AVAILABILITY Standard, Chemical-Resistant, UV-Resistant

For sealing stormwater retention systems & 4-sided precast structures.

APPLICATIONS Box Culverts, 4-Sided Precast Structures
BOX CULVERT SIZES All Sizes
AVAILABILITY Standard, Chemical-Resistant, UV-Resistant

A wider coupler for RCP and manhole rehabilitation.

APPLICATIONS Tongue & Groove, Bell & Spigot, Round or Elliptical Pipe, Manholes
SIZES 12 – 144″
AVAILABILITY Standard, Chemical-Resistant, UV-Resistant

For sealing of all types of precast joints where hydrocarbon solvent resistance is needed.

APPLICATIONS Tongue & Groove, Bell & Spigot, Round or Elliptical Pipe, Manholes, Box Culverts, 4-Sided Precast Structures
SIZES All Sizes

PolySeal Coupler

for corrugated poly pipe (HDPE/P)

A flexible, high-strength pipe coupling that permanently seals and restrains corrugated plastic pipe. PolySeal Couplers are over-engineered, reinforced external joint seals designed to connect HDPE or HDPP corrugated pipe, while remaining both infiltration-proof and exfiltration-resistant. PolySeal Couplings are perfect for cut & butt joints, field repairs, detention & retention systems, and more.

For connecting same diameter Reinforced Concrete Pipe (RCP).

APPLICATIONSTongue & Groove, Bell & Spigot, Round or Elliptical Pipe, Sub-Grade or Above Ground
PIPE SIZES12 – 144″
AVAILABILITYStandard, Chemical-Resistant, UV-Resistant

For sealing precast manhole sections.

APPLICATIONS Precast Manholes, Sub-Grade or Above Grade
MANHOLE SIZES 48 – 120″
AVAILABILITY Standard, Chemical-Resistant, UV-Resistant

For sealing stormwater retention systems & 4-sided precast structures.

APPLICATIONS Box Culverts, 4-Sided Precast Structures
BOX CULVERT SIZES All Sizes
AVAILABILITY Standard, Chemical-Resistant, UV-Resistant

A wider coupler for RCP and manhole rehabilitation.

APPLICATIONS Tongue & Groove, Bell & Spigot, Round or Elliptical Pipe, Manholes
SIZES 12 – 144″
AVAILABILITY Standard, Chemical-Resistant, UV-Resistant

For sealing of all types of precast joints where hydrocarbon solvent resistance is needed.

APPLICATIONS Tongue & Groove, Bell & Spigot, Round or Elliptical Pipe, Manholes, Box Culverts, 4-Sided Precast Structures
SIZES All Sizes

CSP Coupler

for corrugated metal/steel pipe (CSP)

A single unit, external sealing band designed to prevent infiltration and/or exfiltration into corrugated steel pipe (CSP) drainage systems. The coupling creates a strong, permanent, and semi-flexible seal around the joint, on both rerolled (annularized) or non-rerolled (spiral) pipe ends.

For connecting same diameter Reinforced Concrete Pipe (RCP).

APPLICATIONSTongue & Groove, Bell & Spigot, Round or Elliptical Pipe, Sub-Grade or Above Ground
PIPE SIZES12 – 144″
AVAILABILITYStandard, Chemical-Resistant, UV-Resistant

For sealing precast manhole sections.

APPLICATIONS Precast Manholes, Sub-Grade or Above Grade
MANHOLE SIZES 48 – 120″
AVAILABILITY Standard, Chemical-Resistant, UV-Resistant

For sealing stormwater retention systems & 4-sided precast structures.

APPLICATIONS Box Culverts, 4-Sided Precast Structures
BOX CULVERT SIZES All Sizes
AVAILABILITY Standard, Chemical-Resistant, UV-Resistant

A wider coupler for RCP and manhole rehabilitation.

APPLICATIONS Tongue & Groove, Bell & Spigot, Round or Elliptical Pipe, Manholes
SIZES 12 – 144″
AVAILABILITY Standard, Chemical-Resistant, UV-Resistant

For sealing of all types of precast joints where hydrocarbon solvent resistance is needed.

APPLICATIONS Tongue & Groove, Bell & Spigot, Round or Elliptical Pipe, Manholes, Box Culverts, 4-Sided Precast Structures
SIZES All Sizes

Dissimilar Pipe Coupler

for joining different pipe types
and/or outside diameters

DP Couplers are engineered to join, seal, and restrain the connections between pipes of differing material and/or pipes of varying nominal size. With hundreds of designs for virtually any scenario of pipe combinations, these reinforced, external sealing bands permanently prevent infiltration into gravity-flow drainage systems.

For connecting same diameter Reinforced Concrete Pipe (RCP).

APPLICATIONSTongue & Groove, Bell & Spigot, Round or Elliptical Pipe, Sub-Grade or Above Ground
PIPE SIZES12 – 144″
AVAILABILITYStandard, Chemical-Resistant, UV-Resistant

For sealing precast manhole sections.

APPLICATIONS Precast Manholes, Sub-Grade or Above Grade
MANHOLE SIZES 48 – 120″
AVAILABILITY Standard, Chemical-Resistant, UV-Resistant

For sealing stormwater retention systems & 4-sided precast structures.

APPLICATIONS Box Culverts, 4-Sided Precast Structures
BOX CULVERT SIZES All Sizes
AVAILABILITY Standard, Chemical-Resistant, UV-Resistant

A wider coupler for RCP and manhole rehabilitation.

APPLICATIONS Tongue & Groove, Bell & Spigot, Round or Elliptical Pipe, Manholes
SIZES 12 – 144″
AVAILABILITY Standard, Chemical-Resistant, UV-Resistant

For sealing of all types of precast joints where hydrocarbon solvent resistance is needed.

APPLICATIONS Tongue & Groove, Bell & Spigot, Round or Elliptical Pipe, Manholes, Box Culverts, 4-Sided Precast Structures
SIZES All Sizes

Not sure what you need?

Choose the right coupler for the job.
