Dissimilar Pipe Coupler

External couplers for joining pipes of different materials and/or diameter

The right way to connect pipes of different materials.

Common Connections

MarMac Construction Products Dissimilar Pipe Coupling RCP to HDPE
RCP > HDPE
MarMac Construction Products Dissimilar Pipe Coupling CMP to HDPE
CMP > HDPE
MarMac Construction Products Dissimilar Pipe Coupling CMP to RCP
CMP > RCP
MarMac Construction Products Dissimilar Pipe Coupling Ductile Iron to HDPE
PVC > HDPE

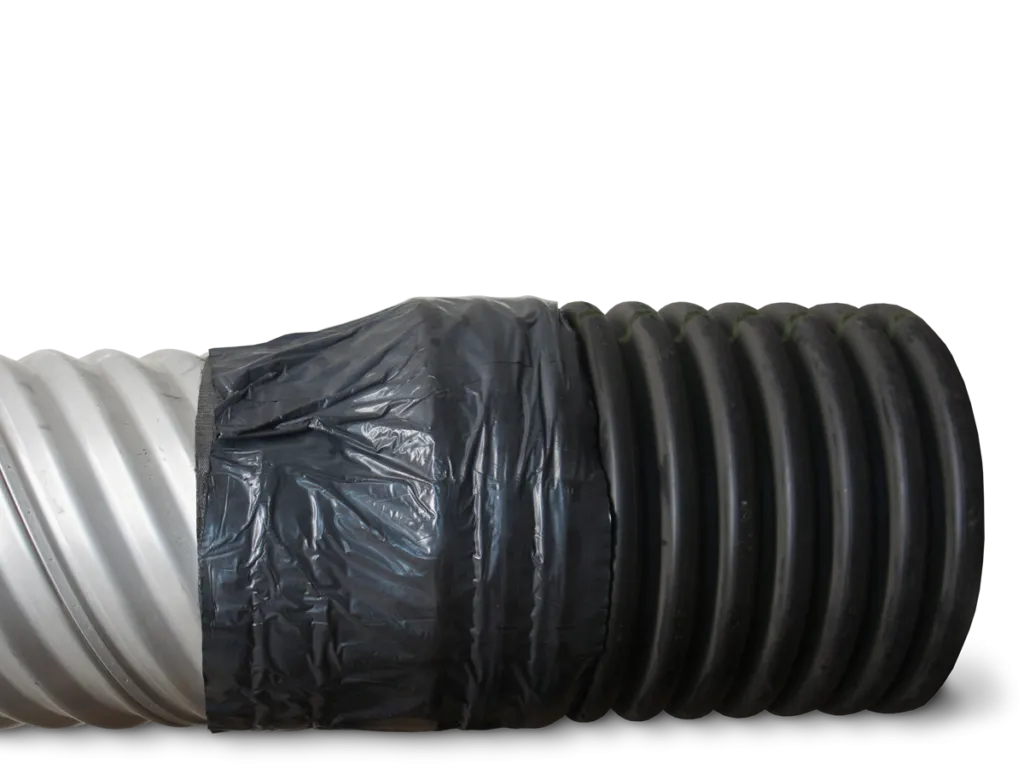

MarMac Dissimilar Pipe Couplers (DP Couplers) are engineered to join, seal, and restrain the connections between pipes of differing material and/or pipes of varying nominal size*. These unique, external sealing bands are reinforced and prevent infiltration into gravity-flow drainage systems.

*While dependent upon pipe material(s) and/or overall pipe diameter(s), the difference in diameter must not exceed 15% or 8″ to allow for proper step-down.

With hundreds of designs, MarMac DP Couplers are able to join virtually any scenario of pipe combinations. Our most commonly joined pipe materials are reinforced concrete pipe (RCP), corrugated metal pipe (CMP), corrugated plastic pipe (HDPE/HDPP), ductile iron (DI), smooth-wall PVC pipe, vitrified clay pipe, and more. Additionally, DP Couplers make a great choice for connecting BMP separator systems.

DP Coupler Dissimilar Pipe Coupler - MarMac Construction Products

The minimum length of a DP Coupler is the circumference of the larger outside diameter (if applicable) plus eight inches for overlap. Our DP Couplers are easy to install, cost-efficient, permanent, readily available, and fully customizable.

Universal Dissimilar Couplers

Universal DP Couplers are your go-to for joining size-for-size pipes; from B-wall RCP (w/o bell) down to SCH40 PVC and every other type of pipe in that nominal size. Universal DP Couplers are heavy duty with 3-ply, 180 mil thickness, and are designed with 4-compression bands to mechanically seal the coupler to the pipe walls. A custom DP Coupler is required for any non-rerolled CMP.



Features & Benefits
  • Strong, permanent, shear & puncture resistant
  • Easily installed & immediately inspectable
  • Tens of thousands in use today with nearly a 100% success rate
  • Full-perimeter, positive seal = infiltration-proof
  • Specially formulated mastic layer
  • Heavy-duty, high quality construction
  • Protection from corrosion, acids & alkali

Designed to Perform.

DP Couplers integrate several unique components into a single, customizable, full-perimeter, external sealing band. Our specially-formulated, rubberized mastic aggressively adheres to all known pipe surfaces, providing a positive seal to battle infiltration. The coupling is reinforced with a sheet of durable, woven polypropylene which provides shear and puncture resistance. An outside backing of heavy-duty, cross-laminated polypropylene protects the joint from future infiltration, acids, and alkali. They are constructed with four integrated compression bands, which when tightened, form a mechanical seal, permanently bonding the mastic to the pipe wall.

POLYETHYLENE BACKING

Heavy-duty, cross-laminated top layer, available with UV & chemical resistance

RUBBERIZED MASTIC

Specially formulated, rubberized mastic aggressively adheres to all concrete surfaces

WOVEN POLYPROPYLENE

Puncture & shear resistant reinforcement layer sandwiched between mastic sealant

RELEASE FILM

A protective, peelable release film protects the mastic until ready for use

MarMac Construction Products Dissimilar Coupler Layers

Over the years MarMac DP Couplers have sealed tens of thousands of connections between different types and sizes of pipe. Our couplings are the proven and permanent pipe coupling for the most challenging of installations. They are the “go to” solution for when it really matters.  Designed to be installed in the worst field conditions, DP Couplers always succeed where competitors’ products fail.

Our dedicated production line and unique manufacturing system allow us to quickly ship small or large quantities of DP Couplers, custom designed specifically for almost any type and size of pipe you encounter in the field. Many DP Couplers are available for shipping the same day the order is placed. We routinely ship to job sites or drop ship directly to customers and end-users.

COMMON CONNECTIONS

Some of our most popular pipe jointing scenarios are below. This is by no means a comprehensive list or a suggestion that these connections perform better than others. Dissimilar Pipe Couplers are able to connect virtually any structurally sound pipe material with another. DP Couplings are also a great choice for two pipes of the same material, but with differing nominal diameter. The aforementioned diameters however, must be reasonably close to account for proper step-down/reduction. Contact us using the form at the bottom of this page for more information.

Not sure whether a Dissimilar Pipe Coupler is the right choice for your job? Contact us today and tell us about your installation scenario using the form below!

Dissimilar Pipe Coupler RCP to HDPE - MarMac Construction Products

RCP / HDPE

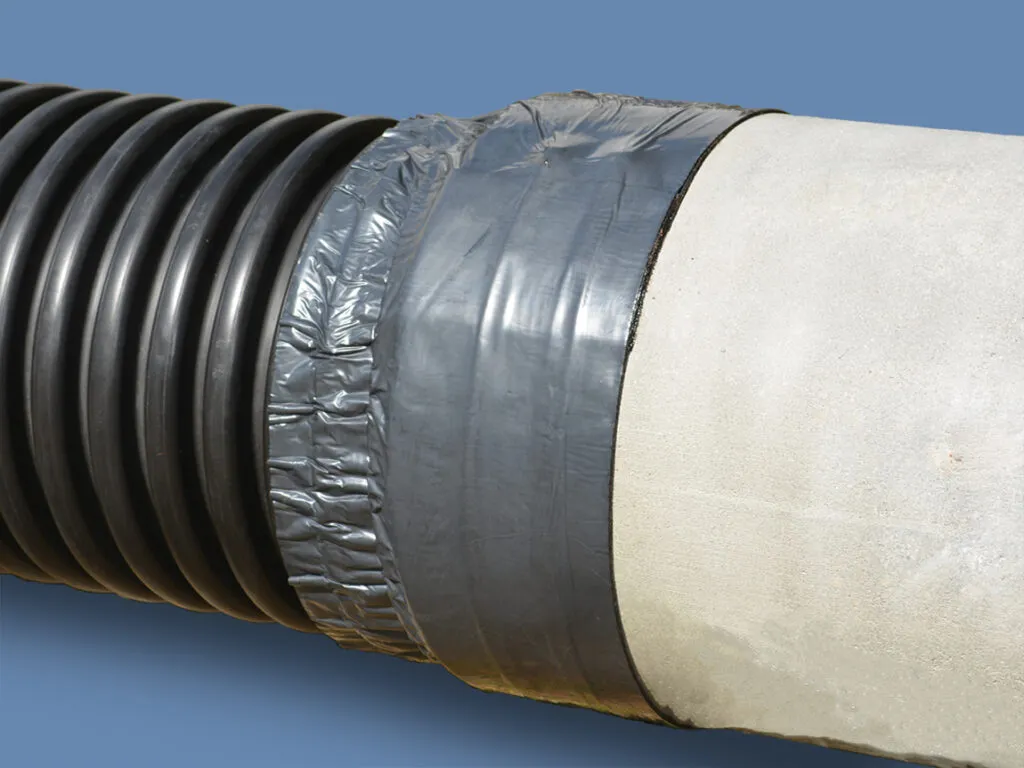

A common DP Coupler connection, the integrated compression bands are spaced to engage two corrugations of the HDPE pipe as well as the bell & spigot or tongue & groove RCP surface.
*Please specify which is relevant to your RCP connection

CSP / HDPE

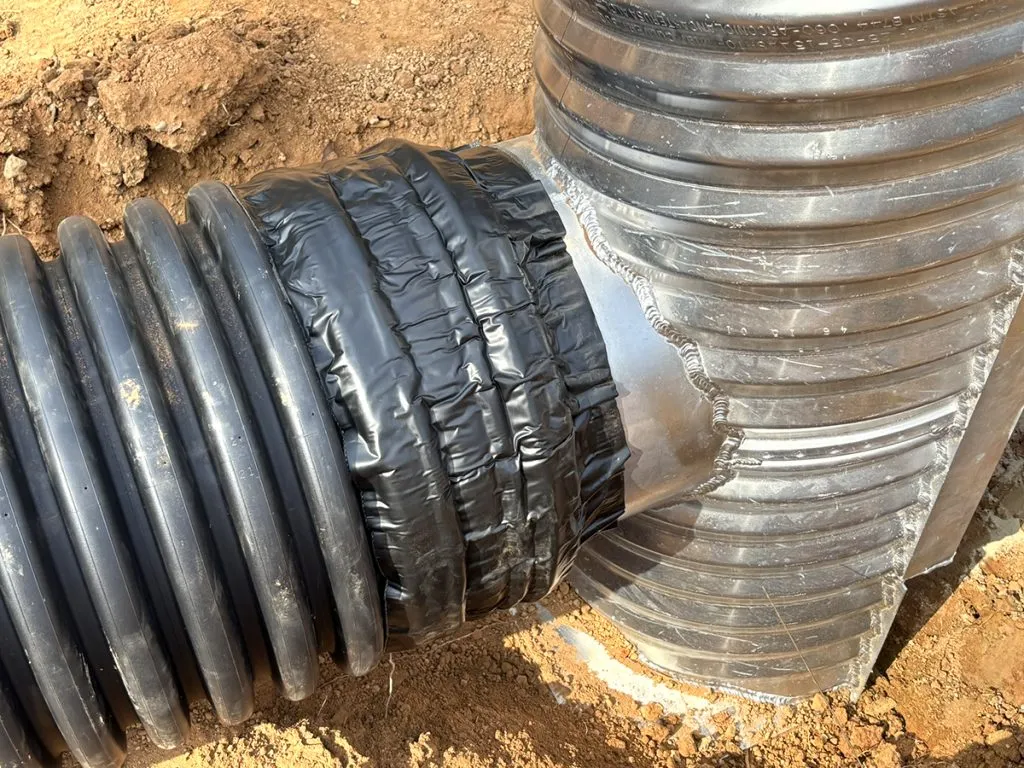

This DP Coupler is designed so that two compression bands engage two HDPE pipe corrugation valleys, while two butyl-reinforced compression bands engage the CSP for a minimum of soil/silt-tight performance.

Dissimilar Pipe Coupler CMP to HDPE - MarMac Construction Products
Dissimilar Pipe Coupler CMP to RCP - MarMac Construction Products

CSP / RCP

Another ordinary DP Coupler connection, the two integrated compression bands on the CSP side are reinforced with butyl underlays by default to properly seal the helical pipe corrugations for soil/silt-tight performance at minimum.
*Please specify whether CSP end is rerolled or non-rerolled

PVC / HDPE

This design is widened to engage more surface area of the smooth-wall PVC (DI, or clay) pipe by the coupler’s mastic contact surface. Per usual, four compression bands are utilized, which are tightened during installation to achieve a strong, permanent,  infiltration-proof and exfiltration resistant connection.

Dissimilar Pipe Coupler PVC to HDPE - MarMac Construction Products
DP Couplers are strategically manufactured with cross-laminated polyethylene, woven polypropylene, rubberized “cold-flow” mastic, as well as integrated compression bands, similar to MarMac’s PolySeal couplers. DP Couplers are three-ply with a total thickness of approximately 180 mils. See the Typical Properties table for more information.

MarMac makes no claim regarding the hydrostatic performance of this product in field applications since the character of installation can neither be predicted nor controlled by MarMac.

Couplers should be stored carefully in their original packaging, out of direct sunlight and protected from the elements. Materials should be kept away from direct heat, sparks and open flame. For optimum results, couplers should be stored in a tepid (60°-80°F) environment prior to installation.

MIN MAX
RUBBERIZED MASTIC
Ash-inert matter 8% 15%
Volatiles 0.1% 2.0%
Softening temp 175°F
Specific gravity 0.95 1.05
Penetration 60 dmm 90 dmm
Flow 10 mm 10 mm
POLYETHYLENE BACKING
Tensile strength 4000 psi
Elongation at break 100%
Tear resistance 1500 psi
Water absorption 0.01%
REINFORCING MESH ELEMENT
Tensile strength (Warp) 75 lb/in
Tensile strength (Fill) 75 lb/in
Elongation at break (Warp) 20%
Elongation at break (Fill) 20%
The coupler shall be placed around the pipe, mastic side to the pipe, spanning the joint. The protective release film shall be removed and the coupler applied with the overlap at the top of the pipe. The straps shall be secured (outside straps first) on the larger outside diameter pipe (when applicable) with the proper tools. Then, the straps on the outside of the smaller outside diameter pipe shall be secured. The inside straps shall be tightened last. The closing flap shall cover the exposed strap work area, completing the joint.

AVAILABILITY

All sizes of gravity flow pipe

APPLICATIONS

Reinforced Concrete Pipe
HDPE Pipe
Corrugated Metal Pipe
Vitrified Clay Pipe
PVC (gravity flow)
Ductile Iron Pipe
+ More
